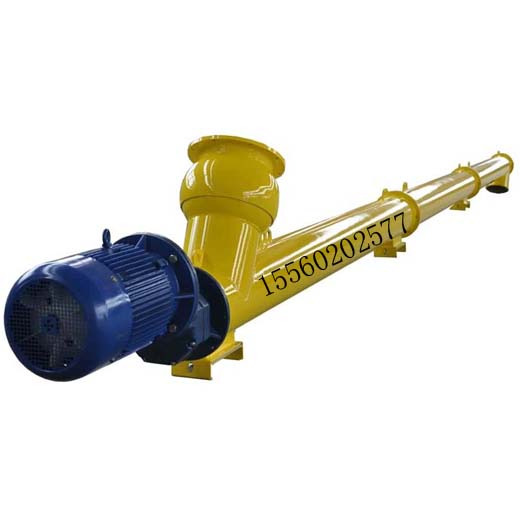

管式螺旋輸送機主要用于混凝土攪拌站輸送水泥，粉煤灰物料，還適用于化工、冶金、糧倉加工、倉儲及其它場所，該機螺旋體直徑小，轉速高，輸送量大，精度高，輸送工況佳。驅動裝置采用齒輪減速機，具有轉矩大，噪音低，不滲油，壽命長，輸送外殼采用優質無縫管，法蘭連接。設備整體剛性好，承載能力大，在輸送時，無論是水平輸送，還是大傾角均可連續輸送，且可隨意選擇工作位置和工作狀態，拆裝修理方便，安全可靠。
Pipe screw conveyor is mainly used for conveying cement concrete mixing station and fly ash material, also applies to chemical industry, metallurgy, grain processing, storage and other places, the machine helix diameter is small, high speed, large throughput, high accuracy, transfer condition.Adopts gear speed reducer drive torque, low noise, no oil leakage, long life, conveying the shell is made of high quality seamless tube, flange connection.Equipment overall good rigidity, large carrying capacity, when conveying, whether horizontal conveying, still can continuous transmission of large dip Angle, and the optional choose job position and working status, easy disassembling repair, safe and reliable. 管式螺旋輸送機的性能

高效率輸送: 采用了新型的懸掛式中間吊軸承架,增大了物料運送空間,減少了物流阻力,加上小直徑,高轉速,變螺距等設計,確保順暢,快速均勻料。
隨意性布置: 外殼采有優質無縫鋼管,通過法蘭將各段連接為整體,無論是水平還是大傾角均可連續輸送.可直接與配套設備連接固定,無需地基基礎,充分利用空間,移動,拆裝十分方便。
多元化聯拉: 進，出料口可采用法蘭連接,布袋連接,布袋吊桿連接,萬向接口連接等多種形式。
可靠的密封: 外殼管的連接處設置了防滲水裝置,工藝孔也經過精心改良,避免由于雨水滲入引起管內水泥結塊而造成堵料,悶機事故的生。
毋需添加油: 由于采用了新穎的中間軸承材料, 既能減摩,耐磨又能自潤滑,即使長期使用也 毋需加添潤滑油,可避免油脂與水泥混合對軸套,軸所產生的副作用。
Efficient delivery: using the new hanging in the middle of the bearing frame, increasing the material shipping space, reduce the resistance of logistics, with small diameter, high speed, varying pitch design, to ensure the smooth and quick homogeneous material.
Arbitrary arrangement: shell has a high quality seamless steel tube, through the flange connecting paragraphs for whole, both horizontal and large Angle can be continuous conveyor. Can be directly connected to form a complete set of equipment, fixed without foundation, make full use of space, mobile, tear open outfit is very convenient.
Diversified group: Feeding port, discharging mouth can use flange connection, the bag is connected, bag derrick connection, a variety of forms such as universal interface connection.
Reliable seal: set up a water seepage control device, the joint of casing tube hole carefully improvement, also avoid due to rain infiltration caused tube cement agglomerate plugging material, boring machine, the birth of the accident.
Do not need to add refueling: the adoption of novel intermediate bearing materials, already can antifriction, wear resistance and self lubricating, even if used for a long time to also do not need to add lubricating oil, can avoid oil mixed with cement to collar, negative effects of shaft.


管式螺旋輸送機的工作原理
管式螺旋輸送機也叫管狀螺旋輸送機是利用旋轉的螺旋將被輸送的物料沿固定的機殼內推移完成輸送工作的。頭部及尾部軸承移至殼體外，吊軸承采用滑動軸承設有防塵密封裝置，軸瓦一般采用粉末冶金，輸送水泥采用毛氈軸瓦，吊軸和螺旋軸采用滑塊連接。
Working principles
Pipe screw conveyor is also called the tube screw conveyor is the use of rotating screw materials will be transported along the fixed inside the casing went on to complete work.Head and tail bearing
moved outside shell, suspension bearing adopts the sliding bearing the dustproof sealing device, commonly used bearing shell powder metallurgy, transport cement adopts the felt pad, hoisting shaft and propeller shaft connected by sliding block.

管式螺旋輸送機的特點

（1）體積小、轉速高、能夠確保快速均勻輸送。
（2）剛性好，密封好。外殼采用無縫鋼管制作，端部采用法蘭連接成一體。
（3）出料端設有清掃裝置，整機噪聲低，適應性強，進出料口位置布置靈活。
（4） 承載重量大、安全可靠。
（5）適應性強、安裝維修方便、壽命長。
Features：
(1) small size, high speed, uniform to ensure fast delivery.
(2) good rigidity, good seal.Shell made of seamless steel tube end use flange connection into a whole.
(3) discharging end is equipped with cleaning device, the machine low noise, strong adaptability, in and out of the mouth position arranged flexibly.
(4) the weight capacity big, safe and reliable.
(5) strong adaptability, easy installation and maintenance, long service life.
